WiiM Amp Firmware v5.0.636939 Update - Nov 28, 2024

[WiiM Team]

Please review the WiiM Amp update release notes below. If you encounter any issues, feel free to reach out to us.

5.0.636939 (Latest)​

Release date:
11 / 28 / 2024

Bug Fixes:

1. Room Correction with Independent L/R Channels: Resolved an issue that prevented Room Correction from functioning properly, ensuring a smoother user experience.



[QuarryHunslet]

I have just received this update.



[slartibartfast]

Wonder what the issue was. I didn't notice anything.



[hgo58]

Wonder what the issue was. I didn't notice anything.

Yes, the WiiM Team is not providing the details you would expect for a pro produkt. They make good software (most of the time) but the documentation lacks a lot.



[Burnside]

Yes, the WiiM Team is not providing the details you would expect for a pro produkt. They make good software (most of the time) but the documentation lacks a lot.

Do we really need to know the details of the bug fix? Something was broken and they’ve issued a fix



[wiimamp user]

Just received the update. Thanks WIIM.



[slartibartfast]

Do we really need to know the details of the bug fix? Something was broken and they’ve issued a fix

If we knew what the bug was we could test the fix. Like I said I tried independent channel room correction with 3.0.2 and it worked.



[slartibartfast]

I see independent channel RC is now stored as a single filter containing L and R. This wasn't the fix



[harkpabst]

I see independent channel RC is now stored as a single filter containing L and R. This wasn't the fix

This is exactly what didn't work for me with the previous firmware: It offered to save RC into a single filter but it would only store one channel.

I'll try and see as soon as I get this update ...



[Smartplug]

I see independent channel RC is now stored as a single filter containing L and R. This wasn't the fix

When you save it say auto LR on last update. I don’t know this new one what it fix.



[BK308]

Just updated and tried the independent L/R rc. So far so good.

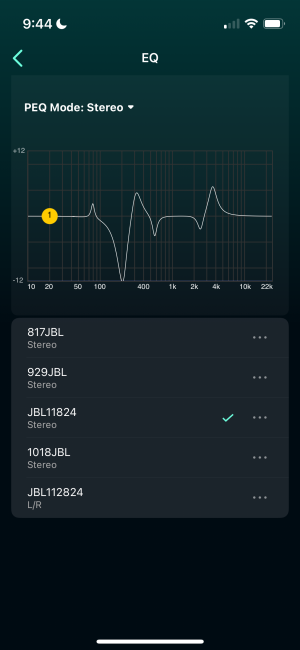

Original stereo from yesterday.

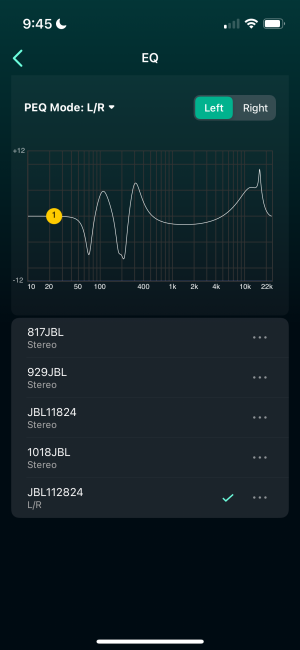

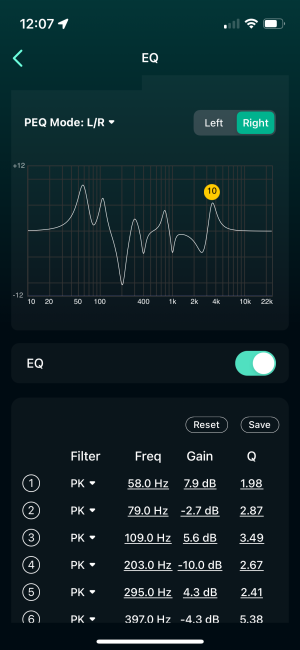

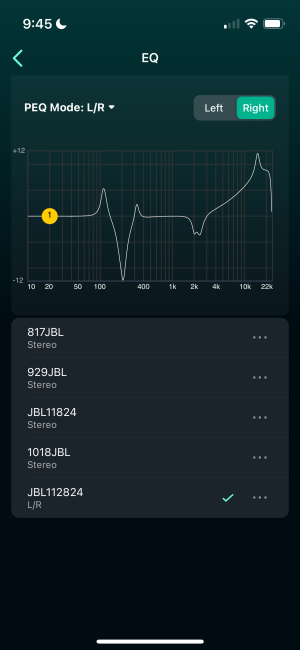

And these are from this morning after the newest update. I don’t use rc below 50Hz and I turn my sub off for the test. After I turn my sub on and ran the timing. Then I set the crossover to my sub at around 40-45Hz.

I noticed the top end open up and channel separation come a bit more alive. I’ll keep playing around with it. Good free software updates. Keep up the good work! Happy customer here!



[harkpabst]

Great to see independent channel RC saved to a single preset working.

That "ultrasonic" correction above 10 kHz is suspicious, though. A 10 to 12 dB boost in this frequency range cannot be right. Most probably the measurement is simply wrong due to the lacking mic built into the phone. How much do you toe-in your speakers?



[BK308]

Great to see independent channel RC saved to a single preset working.

That "ultrasonic" correction above 10 kHz is suspicious, though. A 10.to 12 dB boost in this frequency range cannot be right. Most probably the measurement is simply wrong due to the lacking mic built into the phone. How much do you toe-in your speakers?

I’ve noticed those narrow band spikes in previous versions of room correction. I would just edit them after the fact. I probably should edit these spikes as well. My case was off my iPhone this when I ran the test. Not sure My speakers are at a slight angle. I do have vaulted ceilings though.



[harkpabst]

I’ve noticed those narrow band spikes in previous versions of room correction. I would just edit them after the fact. I probably should edit these spikes as well. My case was off my iPhone this when I ran the test. Not sure My speakers are at a slight angle. I do have vaulted ceilings though.

I'd say disable those corrections above 10 kHz then and check if you miss something.

If you don't, re-run the calibration but limit it to a smaller frequency band so there are more filters available for where it really counts.



[slartibartfast]

I’ve noticed those narrow band spikes in previous versions of room correction. I would just edit them after the fact. I probably should edit these spikes as well. My case was off my iPhone this when I ran the test. Not sure My speakers are at a slight angle. I do have vaulted ceilings though.

It isn't just narrow band spikes though, it starts rising at 4kHz and keeps going. I would try again limiting the correction to 4kHz or lower.



[BK308]

Appreciate the suggestions I re ran r/c and yup different results lol the filters focused on some different bands.



[falex]

How do you measure separate channels? I don't see a specific setting for this. I tried RC today and got a result in stereo. Latest firmware, home app version 3.0.3



[blockchiss73]

Room correction doesn't work



[blockchiss73]

room correction does not work.
phone android.
I can't even enter room correction mode.
application version 3.0.2.
firmware version 5.0.636939



[Smartplug]

How do you measure separate channels? I don't see a specific setting for this. I tried RC today and got a result in stereo. Latest firmware, home app version 3.0.3

You need both firmware and app.
